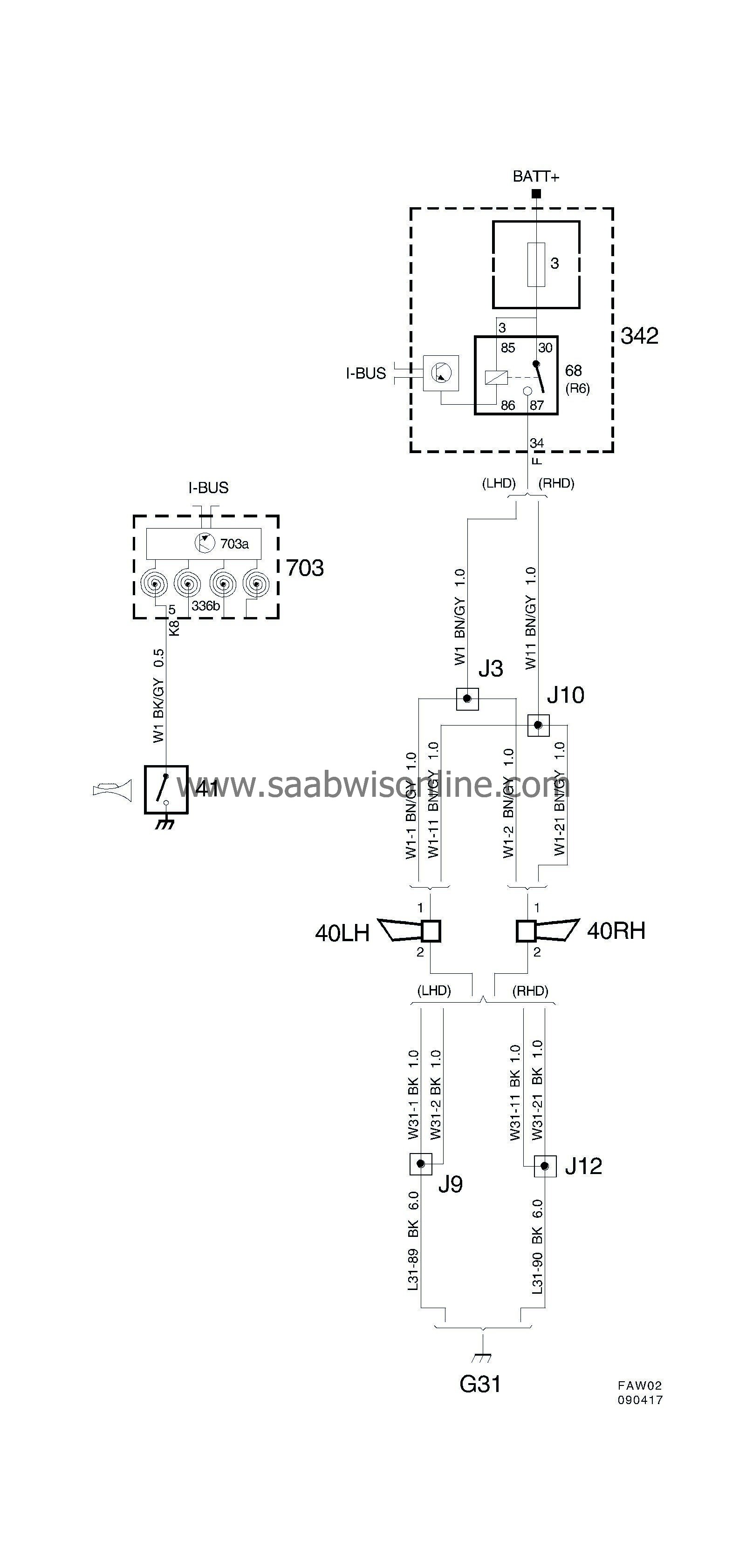

No.
|
Name
location
|
Illus.
|
|
|
Components
|
|
|
40LH
|
Left horn
on the left behind the grille
|
|
|
40RH
|
Right horn
behind right-hand fog light
|
|
|
41
|
Horn switch,
in steering wheel rim
|
|
|
68
|
Horn relay,
in engine bay electrical centre 342
|
|
|
336b
|
Contact unit, steering wheel (horn/switch),
integrated in steering column unit
|
|
|
342
|
Electrical centre, engine bay
next to the battery
|
3
|
|
703
|
Column Integration Module,
on the steering column below the steering wheel
|
|
|
703a
|
Column Integration Module,
in the steering column unit
|
|
|
|
Crimp connections
|
|
|
J3
|
Approx. 230 mm from branching of grounding point G31 towards left headlamp
|
|
|
J9
|
Approx. 150 mm from branching point grounding point G31 towards left headlamp
|
|
|
J10
|
Approx. 230 mm from branching of grounding point G31 towards left headlamp
|
|
|
J12
|
Approx. 130 mm from branching point grounding point G31 towards LH headlamp
|
|
|
|
Grounding points
|
|
|
G31
|
In the engine bay on the side plate above the right wheel housing
|
|
