No.
|
Name
Location
|
Illus.
|
|
|
Components
|
|
|

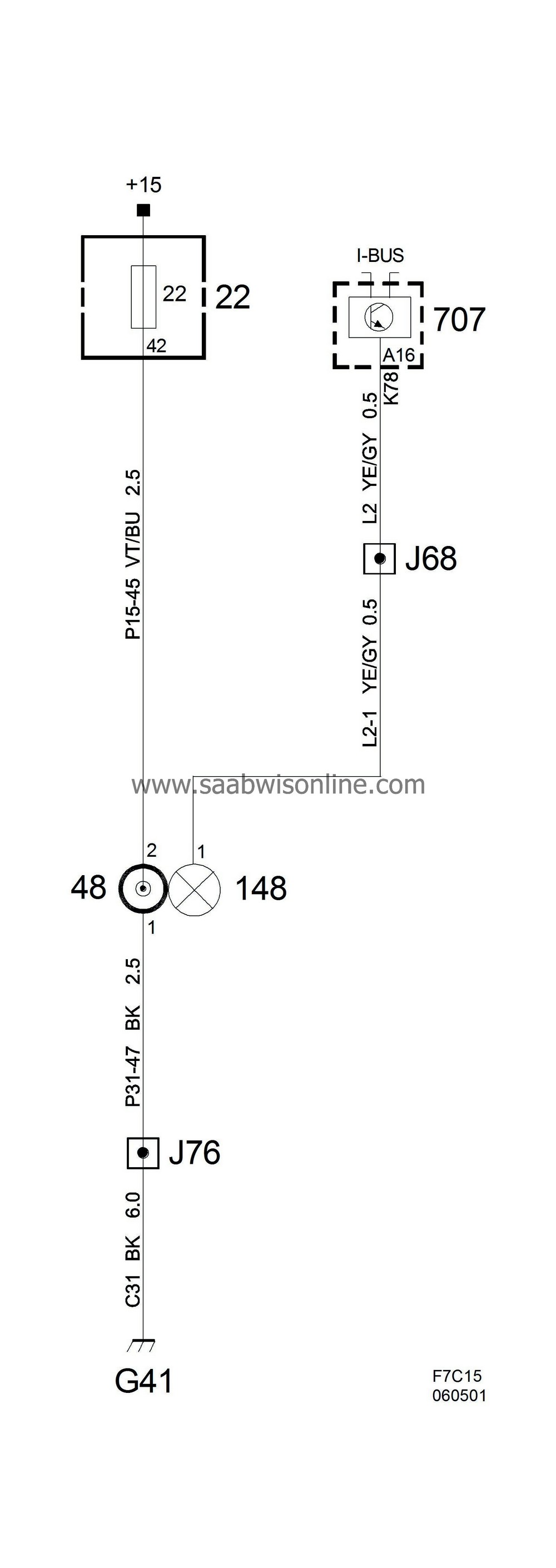

22
|
Main fuse box, dashboard,
on the short side of the dashboard by the left door
|
22
|
|
48
|
Cigarette lighter,
by the ashtray
|
|
|
148
|
Ashtray/cigarette lighter lighting bulb,
by the ashtray
|
|
|
707
|
Body Control Module.
in fuse box in the dashboard
|
|
|
|
Crimp connections
|
|
|
J68
|
LHD:
Approx. 120 mm from branching of column integration module towards grounding point G41
RHD:
Approx. 40 mm from branching of switch panel (737a) towards grounding point G41
|
|
|
J76
|
LHD:
Approx. 40 mm from branching point cigarette lighter towards grounding point G41
RHD:
Approx. 130 mm from branching point grounding point G43 towards the radio
|
|
|
|
Grounding points
|
|
|
G41
|
In the instrument well to the left of the knee member
|
|
