No.
|
Name
Location
|
Illus.
|
|
|
Components
|
|
|

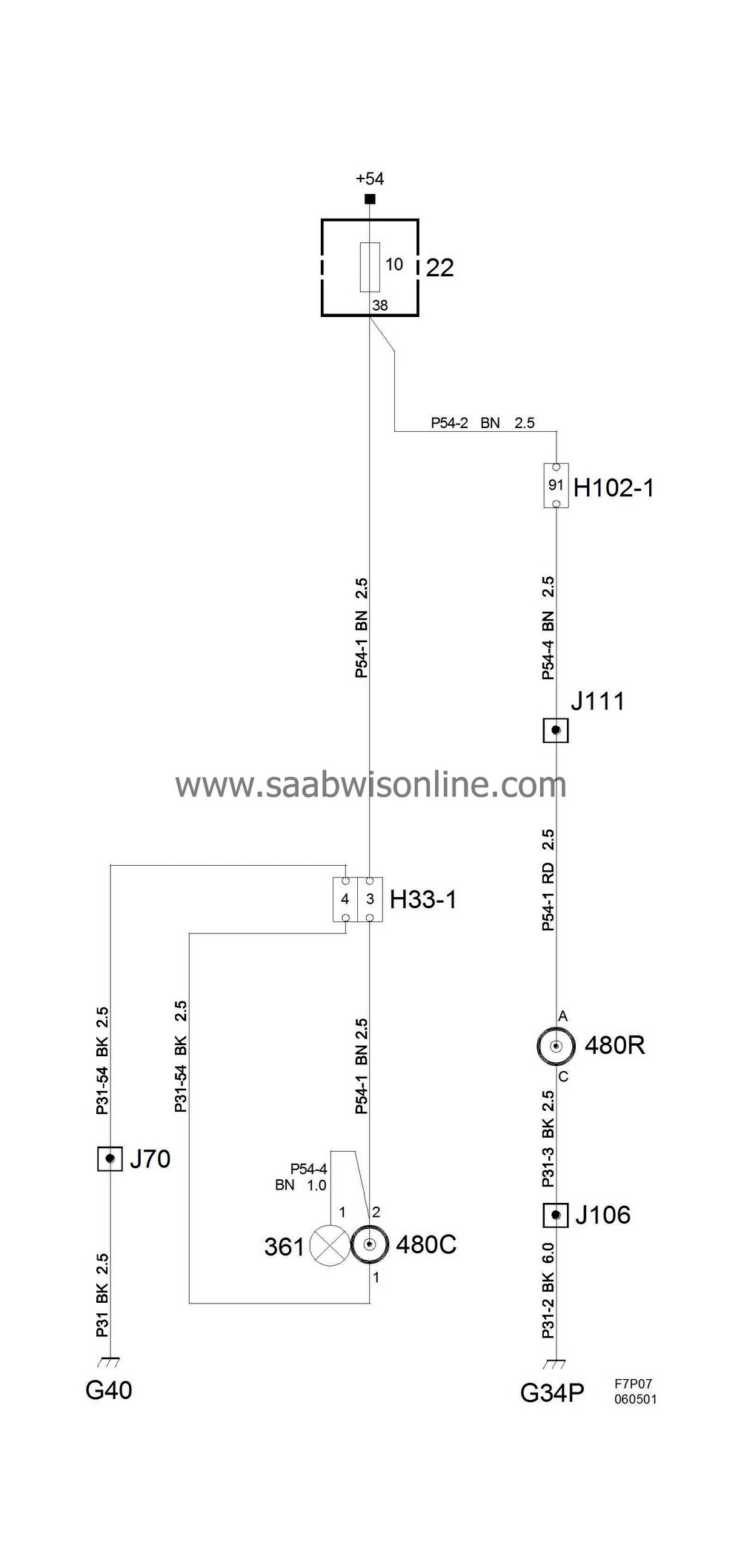

22
|
Main fuse box, dashboard,
on the short side of the dashboard by the left door
|
10
|
|
361
|
Lighting socket 12 V bulb
by the socket
|
|
|
480C
|
Cabin, 12 V socket,
in the centre console's storage compartment
|
|
|
480R
|
12 V socket, luggage compartment
to the right in the luggage compartment
|
|
|
|
33-pin connector
|
|
|
H33-1
|
Black connector on the console to the left of the ignition switch
|
|
|
|
102-pin connector
|
|
|
H102-1
|
Black connector on the console to the left of the ignition switch
|
|
|
|
Crimp connections
|
|
|
J70
|
LHD:
Approx. 190 mm from branching point light switch unit towards the column integration module
RHD:
Approx. 150 mm from grounding point G40 towards grounding point G41
|
|
|
J106
|
4D/5D:
Approx. 280 mm from right seat connector
CV:
Approx. 50 mm from the RH seat
|
|
|
J111
|
In branching of connector H102-1
|
|
|
|
Grounding points
|
|
|
G34P
|
Near the floor below the right A-pillar (black tape)
|
|
|
G40
|
In the instrument well to the left of the knee member
|
|
