Special Tools
| Special Tools |
| Illustration | Tool Number/Description |
|
GE-328-B
KM-328-B Remover |
|
EN-422
KM-422 83 94 959 Installer |
|

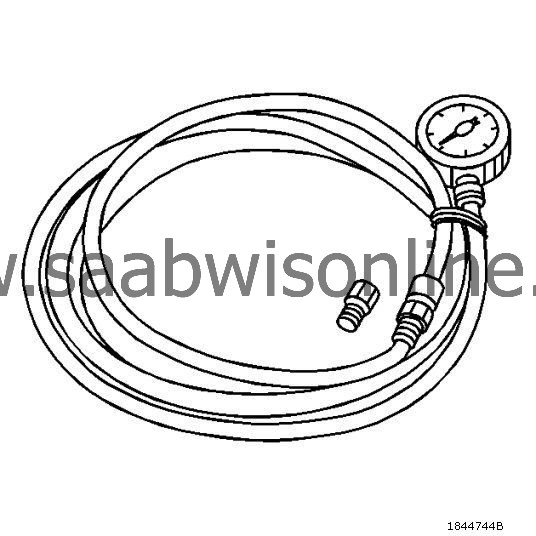

GE-21867-A
J-21867-A KM-498-B Pressure Gauge and Adapter Set |
|

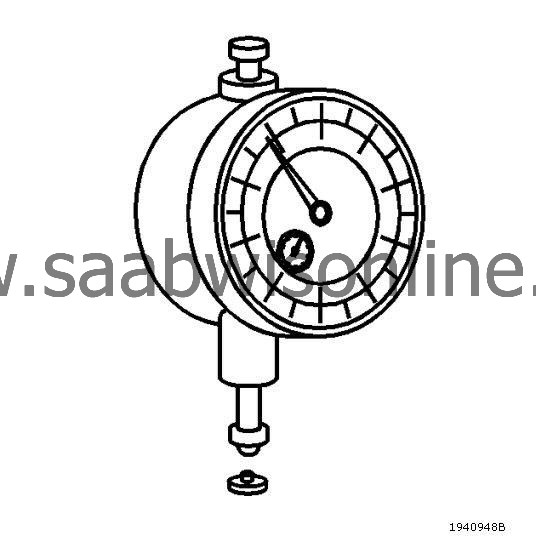

GE-571-B
MKM-571-B J-8001 Dial Gauge |
|
EN-652
KM-652 Flywheel Holder / To fix flywheel, when transmission is removed |
|

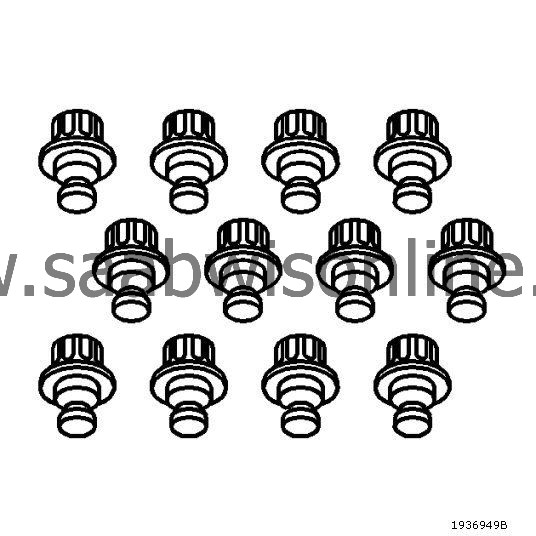

CH-807
KM-807 Closure Plugs / Sealing opened quick fittings, gasoline line |
|
EN-840
KM-840 J-36017 83 94 157 Remover / Removing the valve stem seal |
|
EN-845
KM-845 Suction Device / Removing and installing flat-base tappet |
|

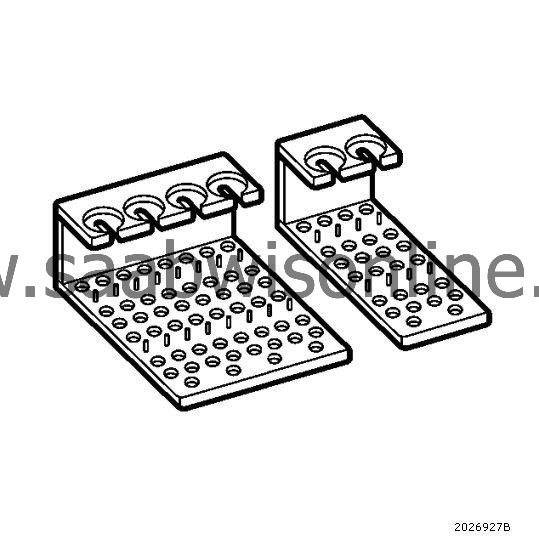

EN-849
KM-849 Assembly Tray / For piston, con-rod, valves, valves spring, valves lifter |
|
EN-889
MKM-889 Automatic Valve Spring Lever |
|
EN-958
KM-958 Valve Stem Seal Installer |
|
EN-6009
KM-6009 83 96 335 Remover/Installer |
|
|

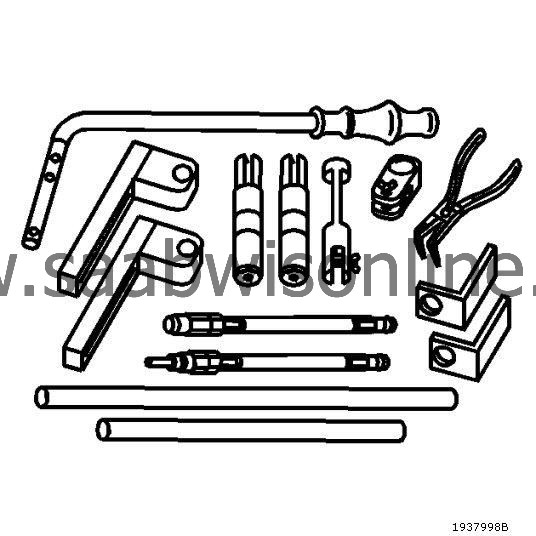

EN-6086
MKM-6086 Basic Kit, Spring and Wedge Replacer |
|

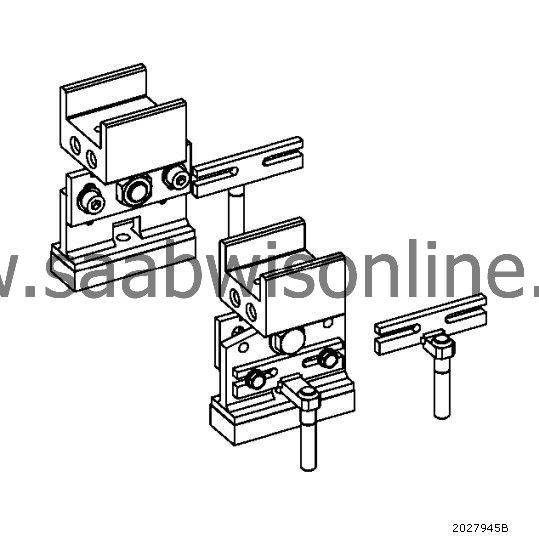

EN-6167
KM-6167 Counter Holder Adapter Set |
|
EN-6171
KM-6171 Release Tool |
|
EN-6215
KM-6215 Mounting Equipment |
|

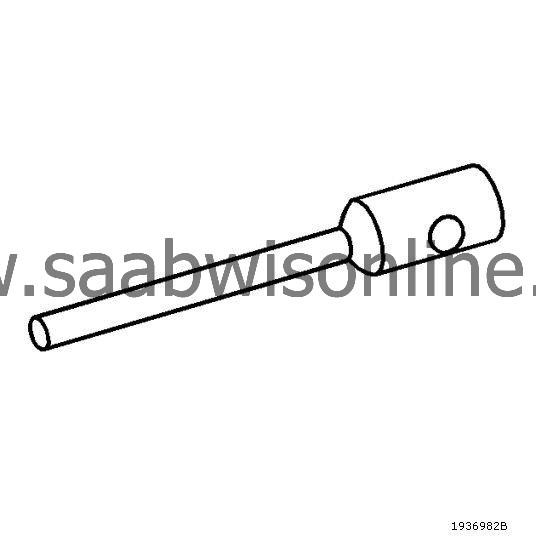

EN-6333
KM-6333 Locking Pin / To secure timing belt tensioner in position |
|
EN-6340
KM-6340 Locking Tool / To hold the camshaft sprockets or adjuster for checking and adjusting valve times |
|
EN-6349
KM-6349 Locking Pin / To fix the drive belt tensioner |
|
EN-6351
KM-6351 Assembly Sleeves / To install crankshaft front seal ring |
|

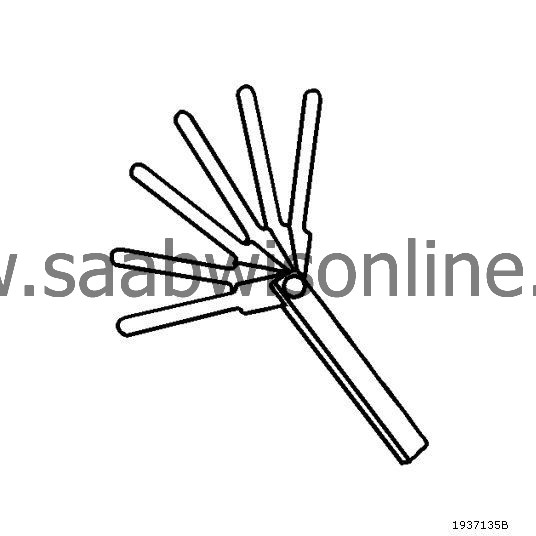

EN-6361
KM-6361 Feeler Gauge Set |
|
EN-6623
KM-6623 Installer / To install the rear crankshaft seal |
|
EN-6624
KM-6624 Remover / To remove the rear crankshaft seal |
|
EN-6625
KM-6625 Flywheel Locking Device / To block flywheel, when transmission is mounted |
|

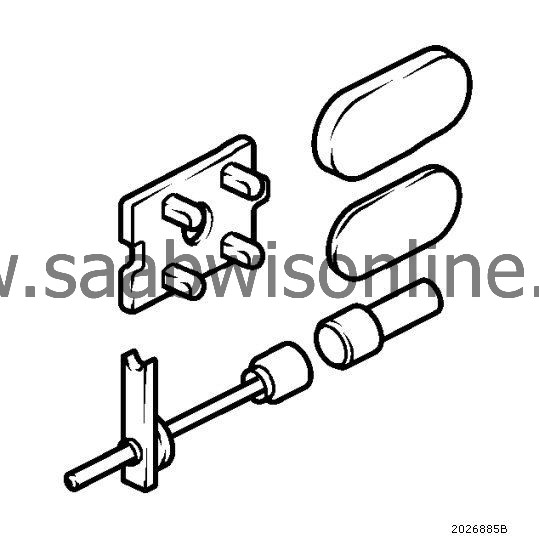

EN-6628-A
KM-6628-A Locking Tool / To fix the camshafts in top dead position for checking and adjustment the valve timing |
|
EN-8087
J-8087 Cylinder Bore Gauge / Used to measure cylinder bore |
|
GE-22738-B
J-22738-B Valve Spring Tester |
|
EN-34730-91
KM-J-34730-91 Pressure Tester |
|
EN-45000
KM-J-45000 J-45000 Seal Remover |
|
EN-45059
J-45059 Torque angle sensor kit / To tighten anti-fatigue bolts according to angle |
|

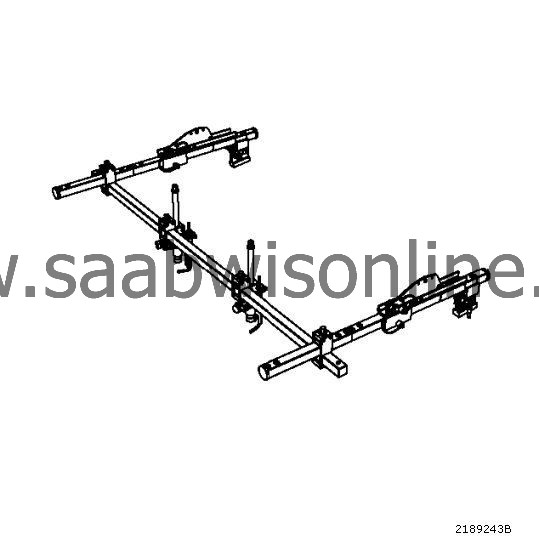

EN 47649
Engine Bridge |
|
EN 47650
Carrier Frame |
|
EN 47650-030
Extensions for Retainer Frame |
|
EN 47650-050
Mounting Rail for Engine Bridge EN-47649 |
|
EN 47650-250
Adaption Carrier Frame Engine Bridge Front |
|
EN 47650-300
Adapter for Engine Bridge Retainer Frame |
|
CH 49290
Mounting Engine/Transmission |
|
CH-49800
EN-50098 Power Steering Pump Belt Installer |
