Special Tools
| Special Tools |
| Illustration | Tool Number/Description |
|
CH 48027
DW 100-010 EN 49495 J 21867 Digital Pressure Gauge |
|
DT 5590
J 5590 J 24254 Bearing and Seal Driver |
|
DW 110-030
Engine Overhaul Stand |
|

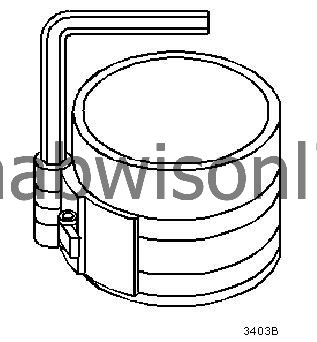

EN 8037
J 8037 Ring Compressor |
|
EN 8062
J 8062 Valve Spring Compressor - Head Off |
|
EN 8087
J 8087 Cylinder Bore Gauge |
|

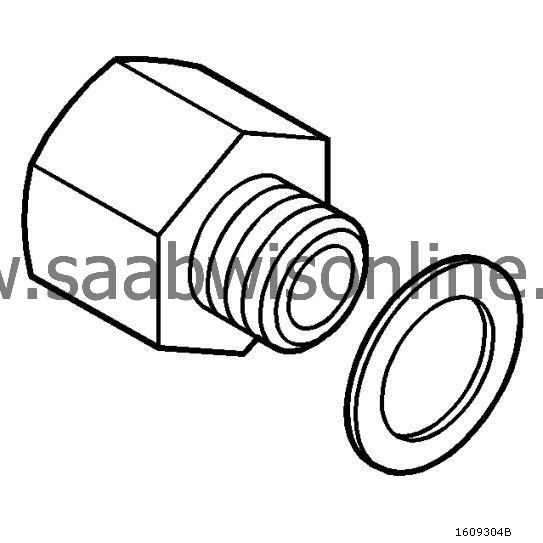

EN 21867-6
J 21867-6 83 93 852 Oil Pressure Adapter Fitting |
|
EN 22738-B
J 22738-B Valve Spring Tester |
|
EN 24254-A
J 24254-A J 24254 Oil Seal Installer |
|
EN 28410
J 28410 Gasket Remover |
|

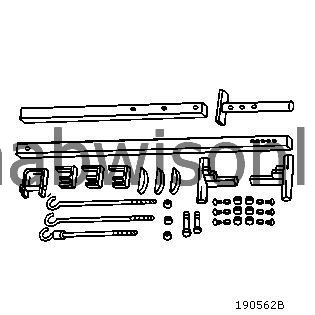

EN 28467-B
DW 110-060 J 28467-B Universal Engine Support Fixture |
|
EN 29184
EN 47635 & J 41998-B EN 47635 J 29184 Oil Seal Installer |
|
EN 35667-A
J 35667-A Cylinder Head Leakdown Tester |
|
EN 36462-A
J 36462-A Engine Support Adapter Leg |
|
EN 37228
J 37228 KM J 37228 Seal Cutter |
|
EN 38416-2
J 38416-2 Crankshaft Button |
|
EN 39313
J 39313 Spark Plug Port Adapter |
|
EN 41712
J 41712 Oil Pressure Switch Socket |
|
EN 41816
J 41816 Crankshaft Balancer Remover |
|
EN 41998-B
J 41998-B J 41998 Crankshaft Balancer Installer |
|

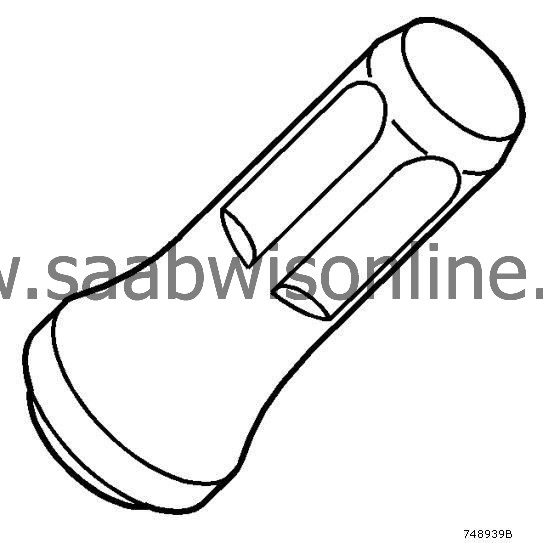

EN 42183
J 42183 Driver Handle |
|

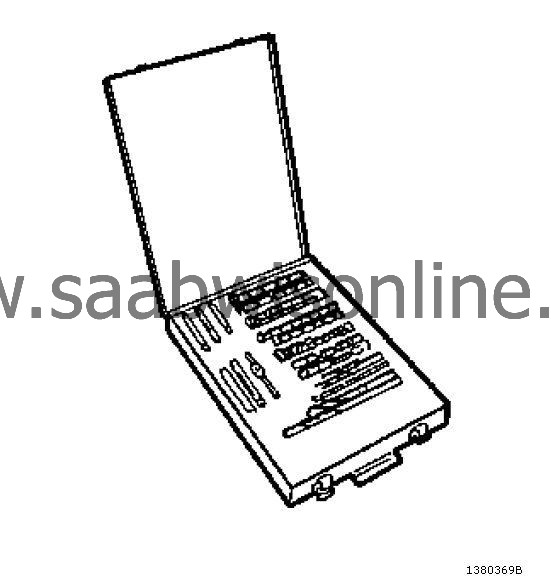

EN 42385-700
J 42385-700 High Feature Thread Repair Kit |
|
EN 42385-2000
J 42385-2000 Thread Insert Kit |
|
EN 43690-A
J 43690-A Rod Bearing Clearance Checking Tool |
|

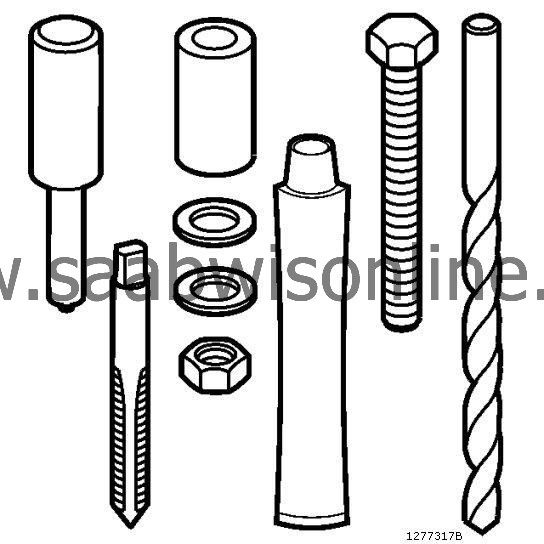

EN 43965
J 43965 Thread Repair Extension Kit |
|

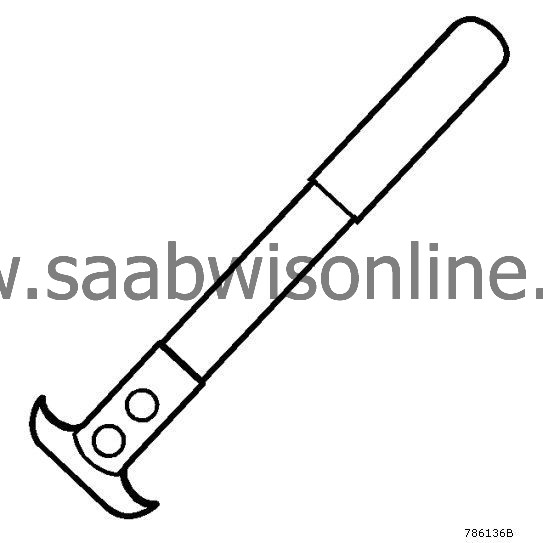

EN 45000
J 45000 KM J 45000 87 91 360 Seal Remover |
|
EN 45027
J 45027 Tensioner Tool |
|
EN 45059
J 45059 KM 470-B Angle Meter |
|
EN 45299
J 45299 Engine Preluber |
|
EN 46101
J 46101 Spark Plug Tube Seal Guide |
|
EN 46103
J 46103 Camshaft Actuator Valve Seal Installer |
|
EN 46104
J 46104 Water Pump Pulley Holding Tool |
|
EN 46106
J 46106 KM 652 Flywheel Holding Tool |
|

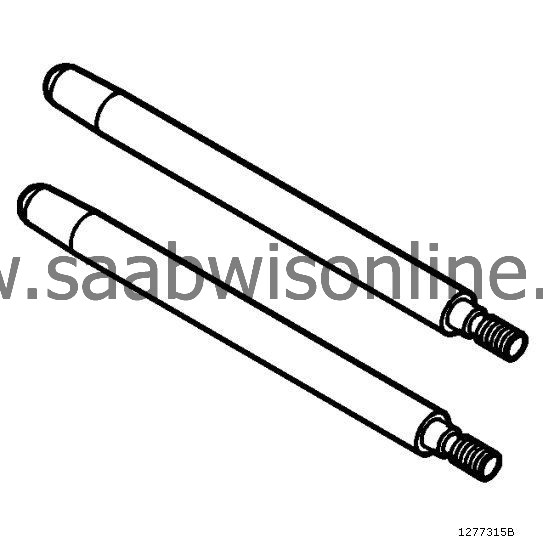

EN 46109
J 46109 Guide Pins |
|
EN 46110
EN 46110-EU J 46110-EU On-Vehicle Valve Spring Compressor |
|

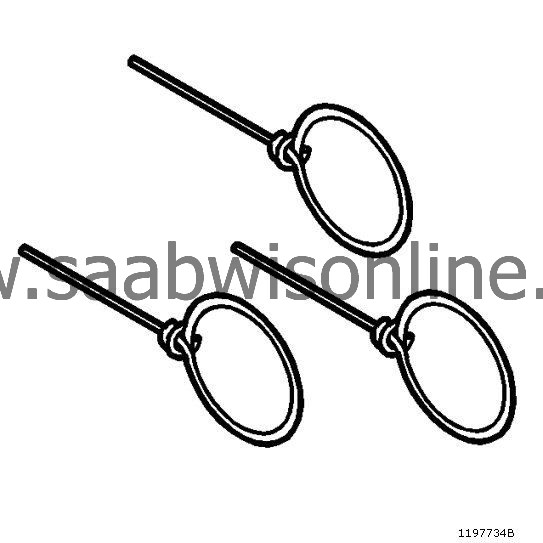

EN 46112
Tensioner Retraction Pins |
|

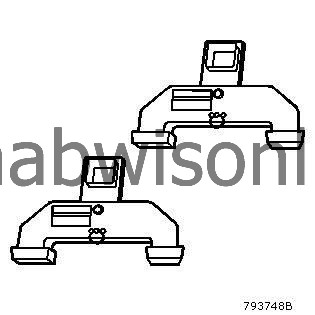

EN 46114
Engine Lift Brackets |
|
EN 46116
KM 840 (Remover)/EN 47986 (Installer) 83 94 157 Valve Stem Seal Remover/Installer |
|
EN 46117
Valve Stem Key Remover/Installer |
|
EN 46119
Off-Vehicle Valve Spring Compressor Adapter |
|

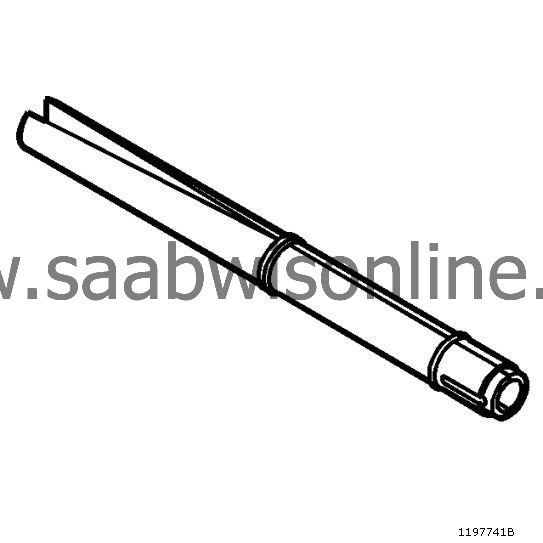

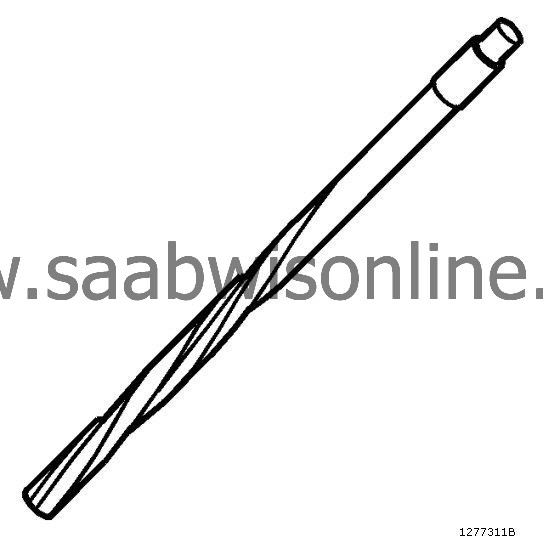

EN 46120
Valve Guide Reamer |
|
EN 46121
Connecting Rod Guide Pin Set |
|
EN 46122
Camshaft Position Actuator Check-Ball Valve Remover/Installer |
|

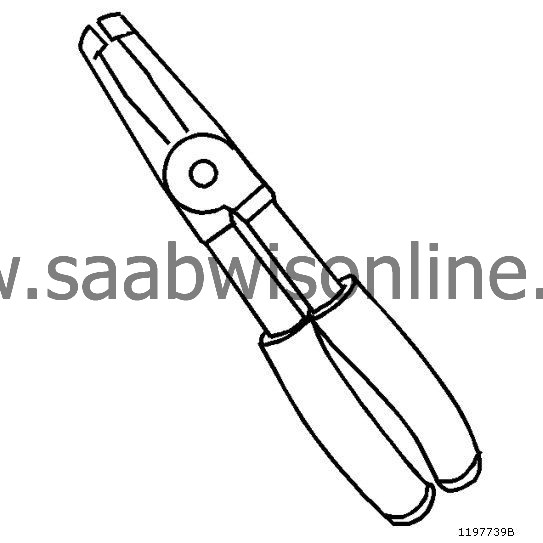

EN 46745
J 43654 Piston Pin Clip Remover/Installer |
|
EN 47839
Crankshaft Rear Oil Seal Installation Tool |
|
EN 47909
Injector Bore and Sleeve Cleaning Kit |
|
EN 47971
Oil Pressure Gauge Adapter |
|

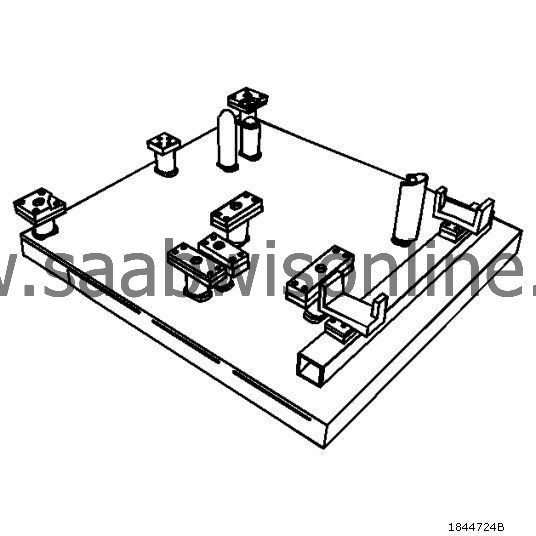

EN 48243
Engine Assembly Remove/Install Pallet |
|

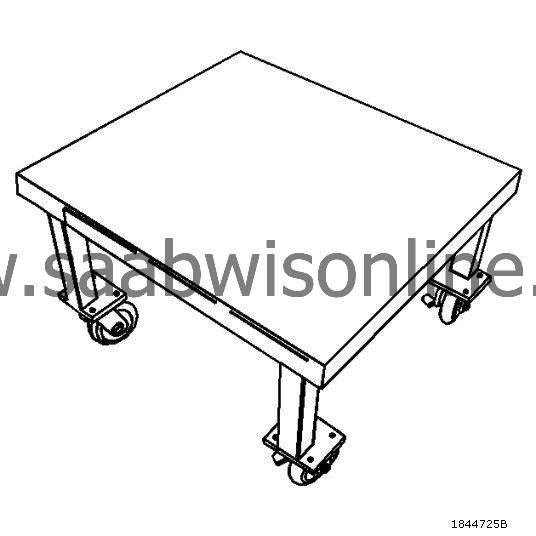

EN 48244
Engine Assembly Remove/Install Pallet Supporter |
|
EN 48313
Timing Chain Retention Tool |
|
EN 48383
Camshaft Retaining Tool |
|
EN 48589-A
EN 48589 Crankshaft Rotation Socket |
|
EN 48896
HP Fuel Pump Installation Alignment Gauge |
|
EN 49102
J 41818 & EN 47985 Crankshaft Bearing Cap Remover |
|
EN 49245
Injector Seal Installer Kit |
|
EN 49247
Injector Retaining Clip Installer |
|
EN 49248
Injector Rail Assembly Remover |
|
EN 49982
Timing Chain Retainer |
|
GE 6125-1B
J 6125-1B KM J 7004 Sliding Hammer Adapter |
|
GE 7872
J 7872 Magnetic Base Dial Indicator |
|

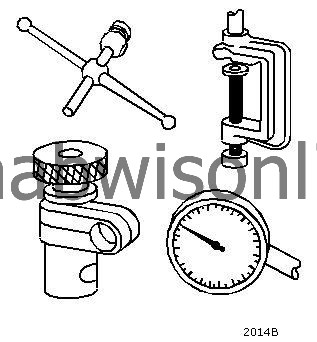

GE 8001
J 8001 Dial Indicator Set |
|
GE 28428-E
J 28428-E High Intensity Black Light Kit |
|
GE 48326
Sealant Dispenser |
|

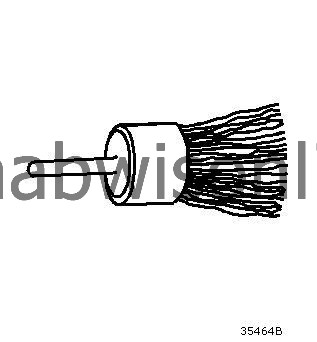

GE 8358
J 8358 Carbon Removal Brush |
|
CH 25033-C
J 25033-C Pulley Installer |
|
CH 25034-C
J 25034-C Pulley Remover |
|

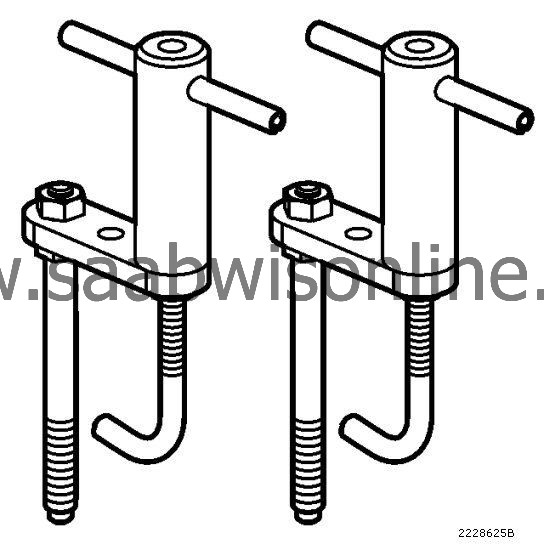

EN 28467-501
J 28467-501 Engine Support Fixture Adapters |
|
EN 36857
J 36857 Engine Lift Bracket |
|
CH 42640
J 42640 Steering Column Anti-Rotation Pin |
